在 jetson orin nx 上 使用 libgpiod 库操作 gpio
在 jetson orin nx 上 使用 libgpiod 库操作 gpio
Ubuntu 22.04 使用较新的内核（5.15+），默认已弃用旧的 sysfs GPIO接口（
CONFIG_GPIO_SYSFS），改用新的字符设备接口（CONFIG_GPIO_CDEV）。所以/sys/class/gpio并不存在，新内核推荐使用 libgpiod 工具操作GPIO，有命令行工具，也有 c 语言操作接口。下面就以jetson orin nx为例讲述一下如何使用。
安装 libgpiod 命令行工具
一般情况我只会用到 gpioinfo，用来查找 chip 和 line 的编号。
1
2
3
4
5
6
7
8
9
10
11
12
# 安装
sudo apt install gpiod
# 查看可用 GPIO 芯片
gpiodetect
# 查看 GPIO 引脚信息（例如芯片0）
gpioinfo 0
# 控制 GPIO
sudo gpioset 0 17=1
# 设置io电平，并保持，直到ctrl + c或者 回车
sudo gpioset -m wait gpiochip0 43=0
# 查看 gpio 的电平状态
cat /sys/kernel/debug/gpio

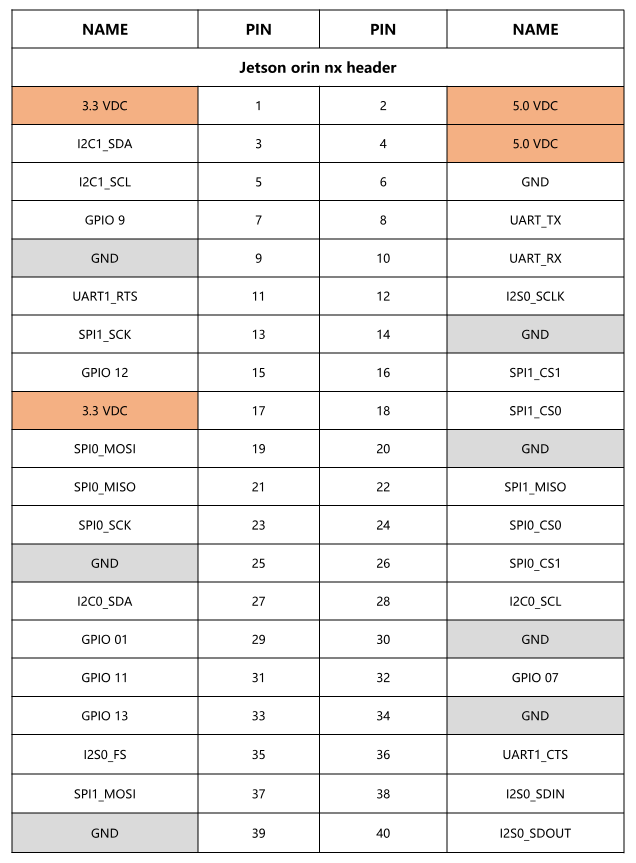

通过引脚对照表找到引脚对应的 GPIO 编号
由此可得:
| 引脚 | gpio 编号 |
|---|---|
| 7 | GPIO09 |
| 15 | GPIO12 |
| 29 | GPIO01 |
| 31 | GPIO11 |
| 32 | GPIO07 |
| 33 | GPIO13 |
通过 GPIO 编号找到对应的 PORT

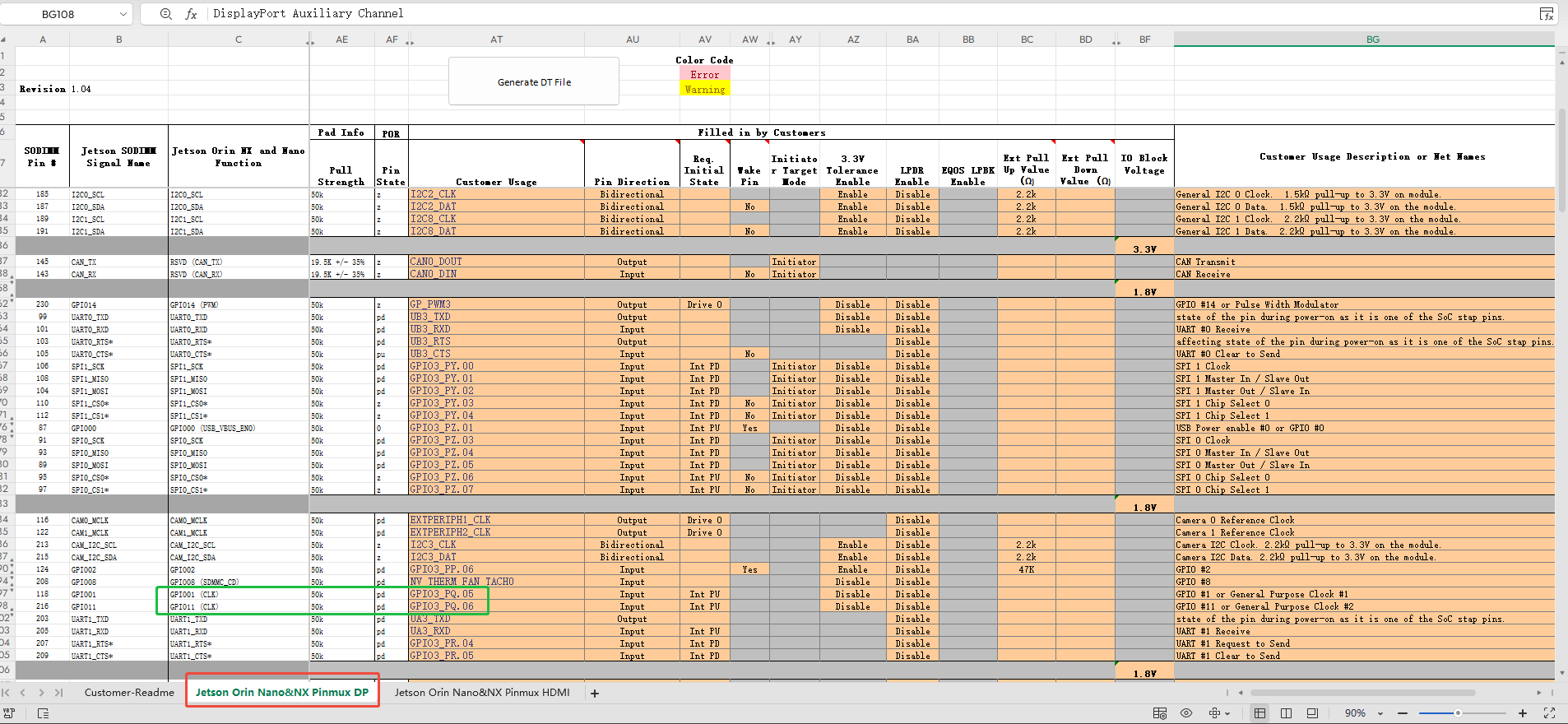

下载 Jetson_Orin_NX_and_Orin_Nano_series_Pinmux_Config_Template.xlsm表格，查找 PORT。
由此可得:
| 引脚 | gpio 编号 | PORT |
|---|---|---|
| 7 | GPIO09 | PAC.06 |
| 15 | GPIO12 | PN.01 |
| 29 | GPIO01 | PQ.05 |
| 31 | GPIO11 | PQ.06 |
| 32 | GPIO07 | PG.06 |
| 33 | GPIO13 | PH.00 |
通过 PORT 找到 Line
执行 gpioinfo 命令
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
gpioinfo
gpiochip0 - 164 lines:
line 0: "PA.00" "regulator-vdd-3v3-sd" output active-high [used]
line 1: "PA.01" unused input active-high
line 2: "PA.02" unused input active-high
line 3: "PA.03" unused input active-high
line 4: "PA.04" unused input active-high
line 5: "PA.05" unused input active-high
line 6: "PA.06" unused input active-high
line 7: "PA.07" unused input active-high
line 8: "PB.00" unused input active-high
line 9: "PC.00" unused input active-high
line 10: "PC.01" unused input active-high
line 11: "PC.02" unused input active-high
line 12: "PC.03" unused input active-high
line 13: "PC.04" unused input active-high
line 14: "PC.05" unused input active-high
line 15: "PC.06" unused input active-high
line 16: "PC.07" unused input active-high
line 17: "PD.00" unused input active-high
line 18: "PD.01" unused input active-high
line 19: "PD.02" unused input active-high
line 20: "PD.03" unused input active-high
line 21: "PE.00" unused input active-high
line 22: "PE.01" unused input active-high
line 23: "PE.02" unused input active-high
line 24: "PE.03" unused input active-high
line 25: "PE.04" unused input active-high
line 26: "PE.05" unused input active-high
line 27: "PE.06" unused input active-high
line 28: "PE.07" unused input active-high
line 29: "PF.00" unused input active-high
line 30: "PF.01" unused input active-high
line 31: "PF.02" unused input active-high
line 32: "PF.03" unused input active-high
line 33: "PF.04" unused input active-high
line 34: "PF.05" unused input active-high
line 35: "PG.00" "Force Recovery" input active-low [used]
line 36: "PG.01" unused input active-high
line 37: "PG.02" unused input active-high
line 38: "PG.03" unused input active-high
line 39: "PG.04" unused input active-high
line 40: "PG.05" unused input active-high
line 41: "PG.06" unused input active-high
line 42: "PG.07" unused input active-high
line 43: "PH.00" unused input active-high
line 44: "PH.01" unused input active-high
line 45: "PH.02" unused input active-high
line 46: "PH.03" "camera-control-output-low" output active-high [used]
line 47: "PH.04" unused input active-high
line 48: "PH.05" unused input active-high
line 49: "PH.06" unused output active-high
line 50: "PH.07" unused input active-high
line 51: "PI.00" unused input active-high
line 52: "PI.01" unused input active-high
line 53: "PI.02" unused input active-high
line 54: "PI.03" unused input active-high
line 55: "PI.04" unused input active-high
line 56: "PI.05" kernel input active-high [used]
line 57: "PI.06" unused input active-high
line 58: "PJ.00" unused input active-high
line 59: "PJ.01" unused input active-high
line 60: "PJ.02" unused input active-high
line 61: "PJ.03" unused input active-high
line 62: "PJ.04" unused input active-high
line 63: "PJ.05" unused input active-high
line 64: "PK.00" unused input active-high
line 65: "PK.01" unused input active-high
line 66: "PK.02" unused input active-high
line 67: "PK.03" unused input active-high
line 68: "PK.04" unused output active-high
line 69: "PK.05" unused output active-high
line 70: "PK.06" unused input active-high
line 71: "PK.07" unused input active-high
line 72: "PL.00" unused input active-high
line 73: "PL.01" unused input active-high
line 74: "PL.02" unused input active-high
line 75: "PL.03" unused input active-high
line 76: "PM.00" kernel input active-high [used]
line 77: "PM.01" unused input active-high
line 78: "PM.02" unused input active-high
line 79: "PM.03" unused input active-high
line 80: "PM.04" unused input active-high
line 81: "PM.05" unused input active-high
line 82: "PM.06" unused input active-high
line 83: "PM.07" unused input active-high
line 84: "PN.00" unused input active-high
line 85: "PN.01" unused input active-high
line 86: "PN.02" unused input active-high
line 87: "PN.03" unused input active-high
line 88: "PN.04" unused input active-high
line 89: "PN.05" unused input active-high
line 90: "PN.06" unused input active-high
line 91: "PN.07" unused input active-high
line 92: "PP.00" unused input active-high
line 93: "PP.01" unused input active-high
line 94: "PP.02" unused input active-high
line 95: "PP.03" unused input active-high
line 96: "PP.04" unused input active-high
line 97: "PP.05" unused input active-high
line 98: "PP.06" unused input active-high
line 99: "PP.07" unused input active-high
line 100: "PQ.00" unused input active-high
line 101: "PQ.01" unused input active-high
line 102: "PQ.02" unused input active-high
line 103: "PQ.03" unused output active-high
line 104: "PQ.04" unused input active-high
line 105: "PQ.05" unused input active-high
line 106: "PQ.06" unused input active-high
line 107: "PQ.07" unused input active-high
line 108: "PR.00" unused input active-high
line 109: "PR.01" unused input active-high
line 110: "PR.02" unused input active-high
line 111: "PR.03" unused input active-high
line 112: "PR.04" unused input active-high
line 113: "PR.05" unused input active-high
line 114: "PX.00" kernel input active-high [used]
line 115: "PX.01" kernel input active-high [used]
line 116: "PX.02" unused input active-high
line 117: "PX.03" unused input active-high
line 118: "PX.04" unused input active-high
line 119: "PX.05" unused input active-high
line 120: "PX.06" unused input active-high
line 121: "PX.07" unused input active-high
line 122: "PY.00" unused input active-high
line 123: "PY.01" unused input active-high
line 124: "PY.02" unused input active-high
line 125: "PY.03" unused input active-high
line 126: "PY.04" unused input active-high
line 127: "PY.05" unused input active-high
line 128: "PY.06" unused input active-high
line 129: "PY.07" unused input active-high
line 130: "PZ.00" unused input active-high
line 131: "PZ.01" "interrupt" input active-high [used]
line 132: "PZ.02" unused input active-high
line 133: "PZ.03" unused input active-high
line 134: "PZ.04" unused input active-high
line 135: "PZ.05" unused input active-high
line 136: "PZ.06" unused input active-high
line 137: "PZ.07" unused input active-high
line 138: "PAC.00" unused output active-high
line 139: "PAC.01" unused input active-high
line 140: "PAC.02" unused input active-high
line 141: "PAC.03" unused input active-high
line 142: "PAC.04" unused input active-high
line 143: "PAC.05" unused input active-high
line 144: "PAC.06" unused input active-high
line 145: "PAC.07" unused input active-high
line 146: "PAD.00" unused input active-high
line 147: "PAD.01" unused input active-high
line 148: "PAD.02" unused input active-high
line 149: "PAD.03" unused input active-high
line 150: "PAE.00" unused input active-high
line 151: "PAE.01" unused input active-high
line 152: "PAF.00" unused input active-high
line 153: "PAF.01" unused input active-high
line 154: "PAF.02" unused input active-high
line 155: "PAF.03" unused input active-high
line 156: "PAG.00" unused input active-high
line 157: "PAG.01" unused input active-high
line 158: "PAG.02" unused input active-high
line 159: "PAG.03" unused input active-high
line 160: "PAG.04" unused input active-high
line 161: "PAG.05" unused input active-high
line 162: "PAG.06" unused input active-high
line 163: "PAG.07" unused input active-high
gpiochip1 - 32 lines:
line 0: "PAA.00" unused input active-high
line 1: "PAA.01" unused input active-high
line 2: "PAA.02" unused input active-high
line 3: "PAA.03" unused input active-high
line 4: "PAA.04" unused output active-high
line 5: "PAA.05" "regulator-vdd-3v3-pcie" output active-high [used]
line 6: "PAA.06" unused input active-high
line 7: "PAA.07" unused input active-high
line 8: "PBB.00" unused input active-high
line 9: "PBB.01" unused input active-high
line 10: "PBB.02" unused input active-high
line 11: "PBB.03" unused output active-high
line 12: "PCC.00" unused output active-high
line 13: "PCC.01" unused output active-high
line 14: "PCC.02" unused output active-high
line 15: "PCC.03" "mux" output active-high [used]
line 16: "PCC.04" unused input active-high
line 17: "PCC.05" unused input active-high
line 18: "PCC.06" unused input active-high
line 19: "PCC.07" unused input active-high
line 20: "PDD.00" unused input active-high
line 21: "PDD.01" unused input active-high
line 22: "PDD.02" unused input active-high
line 23: "PEE.00" unused input active-high
line 24: "PEE.01" unused input active-high
line 25: "PEE.02" unused input active-high
line 26: "PEE.03" unused input active-high
line 27: "PEE.04" "Power" input active-low [used]
line 28: "PEE.05" unused input active-high
line 29: "PEE.06" unused input active-high
line 30: "PEE.07" unused input active-high
line 31: "PGG.00" unused input active-high
由此可得:
| 引脚 | gpio 编号 | PORT | CHIP | LINE |
|---|---|---|---|---|
| 7 | GPIO09 | PAC.06 | gpiochip0 | 144 |
| 15 | GPIO12 | PN.01 | gpiochip0 | 85 |
| 29 | GPIO01 | PQ.05 | gpiochip0 | 105 |
| 31 | GPIO11 | PQ.06 | gpiochip0 | 106 |
| 32 | GPIO07 | PG.06 | gpiochip0 | 41 |
| 33 | GPIO13 | PH.00 | gpiochip0 | 43 |
编写 c++ 代码操作 GPIO
- 安装 lbgpdio 库
1
sudo apt install libgpiod-dev
参考文档 传送门
参考代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
#include <gpiod.h> // sudo apt install libgpiod-dev
#include <cstdint>
#include <string>
#include <tuple>
#include <string>
#include <map>
namespace GpioHelper {
using Pin = uint32_t;
using Chip = std::string;
using Line = uint32_t;
const uint32_t DirectionOut = 0;
const uint32_t DirectionIn = 1;
auto get_pin_map() -> std::map<Pin, std::tuple<Chip, Line>> {
return {
{7, {"gpiochip0", 144}}, // GPIO09 PAC.06
{15, {"gpiochip0", 85}}, // GPIO12 PN.01
{29, {"gpiochip0", 105}}, // GPIO01 PQ.05
{31, {"gpiochip0", 106}}, // GPIO11 PQ.06
{32, {"gpiochip0", 41}}, // GPIO07 PG.06
{33, {"gpiochip0", 43}} // GPIO13 PH.00
};
}
} // namespace GpioHelper
int main() {
// 以开发板引脚 7 为例：
GpioHelper::Pin pin(7);
struct gpiod_chip *pchip;
struct gpiod_line *pline;
// 打开 chip
auto map = get_pin_map();
auto chip = std::get<0>(map[pin]);
auto line = std::get<1>(map[pin]);
pchip = gpiod_chip_open_by_name(chip.c_str());
if (!pchip) {
std::cout << "Failed to open GPIO chip\n";
return -1;
}
// 获取 GPIO Line
pline = gpiod_chip_get_line(pchip, line_num);
if (!pline) {
gpiod_chip_close(pchip);
std::cout << "Failed to get GPIO line\n";
return -1;
}
// 设置 GPIO 方向
auto ret = gpiod_line_request_output(pline, "gpio", GpioHelper::DirectionOut);
if (ret < 0) {
gpiod_line_release(pline);
gpiod_chip_close(pchip);
std::cout << "Failed to set GPIO direction\n";
return -1;
}
// 设置高电平
gpiod_line_set_value(pline, 1);
// 读取电平
int val = gpiod_line_get_value(pline);
std::cout << val << "\n";
// 设置低电平
gpiod_line_set_value(pline, 0);
// 读取电平
val = gpiod_line_get_value(pline);
std::cout << val << "\n";
// 释放资源
if (pline) {
gpiod_line_release(pline);
}
if (pchip) {
gpiod_chip_close(pchip);
}
return 0;
}
本文由作者按照 CC BY 4.0 进行授权
